2015–22 Mustang 5.0L Coyote Coupe ARH Full System

Features & Benefits

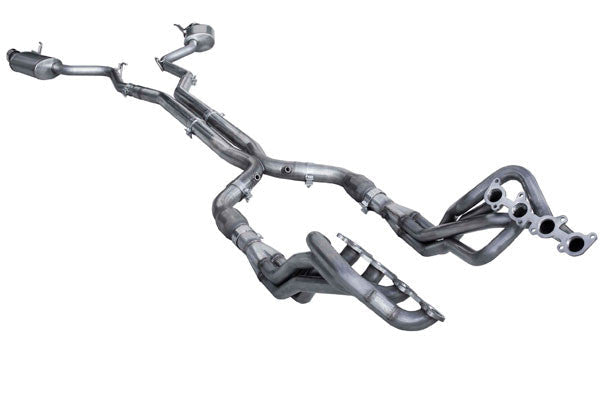

• ARH full exhaust system for Mustang 5.0L Coyote coupes, including headers, mid-pipes, mufflers and tips.
• Made in the USA from 304 stainless steel with 3/8-inch laser-cut flanges, hand-ported TIG-welded inlets, optimized primary routing and merge collectors with scavenger spikes.
• Choice of 1-3/4-inch, 1-7/8-inch or 2-inch primary tubes. ARH reports gains of up to 30 rear-wheel horsepower and specifies a 2-1/2-inch muffler connection.
• Catted versions use severe-duty 300-cell catalytic converters. Ask before ordering about ARH's optional G-Sport upgrade.

Fitment

2015–22 Ford Mustang 5.0L Coyote V8 coupe, according to ARH's selectable 2015–17 and 2018–22 variants. Select the correct year group, primary diameter and catalyst configuration for the exact ARH SKU.

Fitment Notes

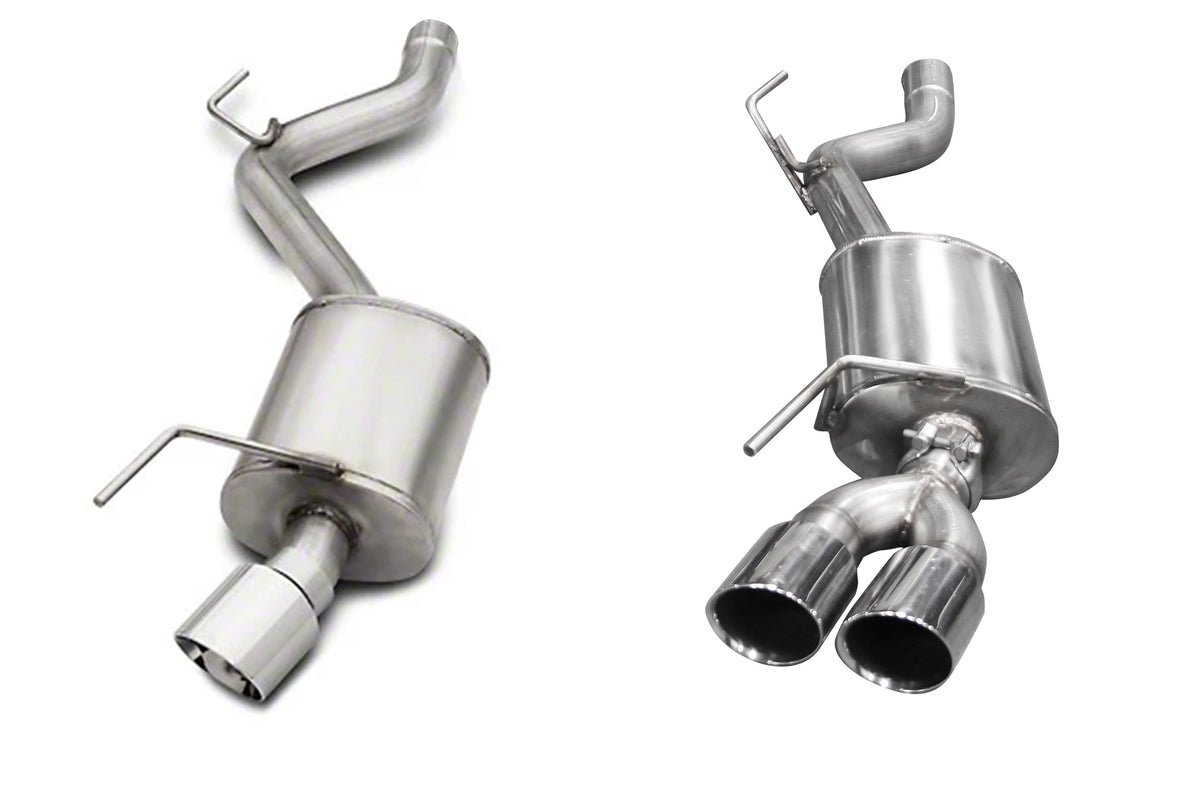

ARH lists single-tip mufflers for 2015–17 and quad-tip mufflers for 2018–22. Its page headline says 2015–23, but no 2023 variant is offered on the supplier page; confirm 2023 fitment before ordering. ARH states this system is manufactured exclusively for racing purposes; installation eliminates legal use on public roads and highways. Built to order; contact us for lead time.
